Buying: |

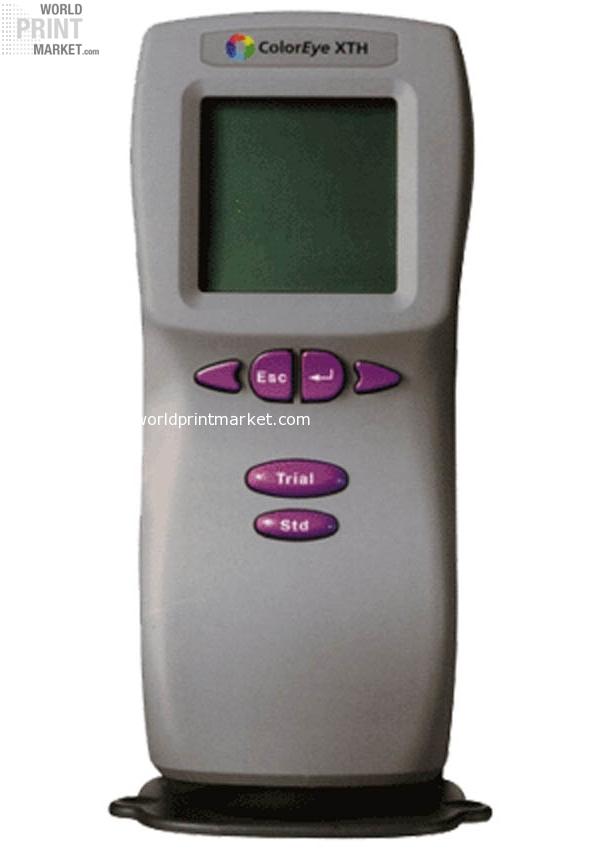

Spektralfotometer ColorEye |
|||
|
|
||||
|
|
||||
| ID | 1751 | |||
| Categories | Measuring Devices | | |||
|
|
||||
| Short description | Spektralfotometer ColorEye | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | ||||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||
| Long description | Spectral photometer ColorEye The spectral photometer ColorEye XTH is ideal for the measurement of big and small tests as well as for arched surfaces. intuitive user interface for quick training and an easy use small, easily and handily for Right and left hander equally comfortably high measuring speed of 1 measurement / Sek. high measuring exactness by xenon flash system also with dark colours easy measurements are enough two measuring screens applicable (Ø 10 mm and Ø 4 mm) thereby parts of the most different size and form measurably patented XT5 technology allows concurrent measurement with or without brilliant inclusion Technical data Ability for reproduction 0.10 RMS dE CIELAB* Device correlation 0.20 RMS dE CIELAB* Source of light xenon D65 brought near Spectral range from 360nm to 750nm Photo metrical area 0% 120% (200%) Spectral resolution 10nm Measuring field in a measurement Ø 4.0 mm and Ø 10.0 mm Measuring geometry d/8 ° Light kinds of the colour metrics D50, D65, A, C, D30... D300, F1... F12, SPL, CWF, user defined Normal observers corner 2 °, 10 ° Colour systems CIE L*a*b *, CIE L*C*h * (a*b *), delta E CIELAB CIE XYZ, CIE xyY, Hunter Lab Colour distance formulae Delta E* 94, delta E CMC, delta E FMCII, delta E Hunter Lab, Metamerieindex Interface RS232 2400, in 4800, in 9600, 19200, 38400 Baud Storage capacity 900 tests / standards Measuring time 100 ms Measuring interval under 1see Weight approx. 850 g Measurements per battery load more than 3000 |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
| View this article on the vendor's web site. | ||||
